Quantum Sequence of Events Recorder

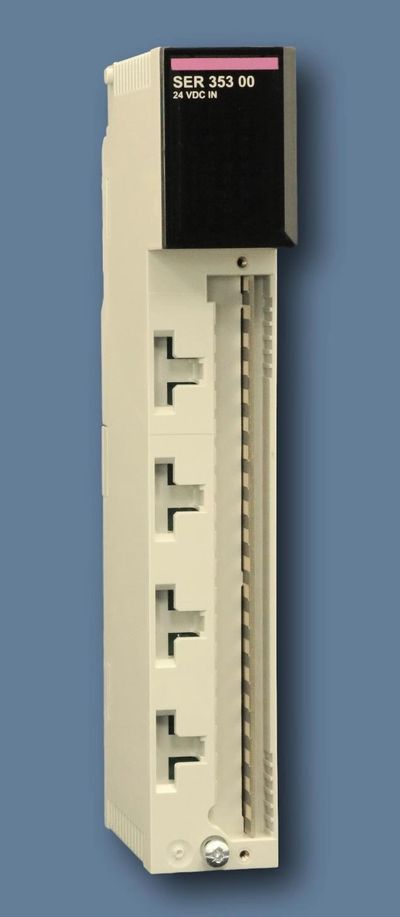

SER x53 00



The SER x53 00 card is designed to operate as a standard 32 point input card for the Modicon Quantum PLC. The inputs can be used as standard 1X registers for PLC programming.


Function blocks are provided for Modsoft, ProWorX, Concept and Unity Pro, which will unload the event data from the card.


Multiple SER cards can be synchronized with each other to provide an event recording system of unlimited size.


The SER x53 00 card can receive its time synchronization from the Quantum CPU, a GPS / IRIG-B Interface card or another SER card.


The SER x53 00 card can be configured to act as a Time Sync Master to synchronize other SER cards.


Specifications

Inputs: 32 Isolated Inputs ( Groups of 8 share a common)

Input Voltage: 24 VDC, 48 VDC or 125 VDC

Input Termination: Pluggable Terminal Block

Input Surge Withstand: IEEE/ANSI 37.90.1 SWC

Power Supply Voltage: 24 VDC, 48 VDC, 125 VDC or 120 VAC

Event Buffer: 2000 Events

Maximum Distance from Time Sync Master: 5000 Ft.

Operating Temperature: -20 C to +85 C

Humidity: 0 to 95% non-condensing


Downloads

Ser x53 Users Guide V320 (pdf)

Download

SER x53 Data Sheet (PDF)

Download

Modsoft Library (zip)

Download

Concept Library (zip)

Download

Unity Pro Library V2 (zip)

Download

Unity Pro Library V3-14 (zip)

Download
