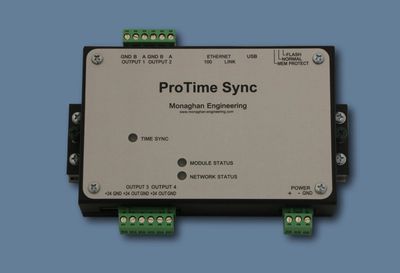

ProTime Sync



The ProTime Sync operates as an IEEE 1588 Precision Time Protocol Slave Clock. The module has 4 time code outputs. Two of the outputs are 5 volt RS-485 signal levels. The other two outputs are 24 volt outputs that can either source or sink up to 250mA. Each output is individually configurable to one of five time code output formats. The module includes an embedded web server for monitoring and configuration.




Features

  • Internal clock synchronized to within 1uS of external time reference
  • 24VDC, 48VDC and 125VDC Power Options

Protocols

  • Modbus TCP/IP
  • IEEE 1588 Precision Time Protocol
  • HTTP Embedded Web Server

Synchronization

  • IEEE 1588 Precision Time Protocol

Outputs

  • 2 each - 5 Volt RS-485
  • 2 each - 24 Volt

Output Time Codes

  • IRIG-B
  • DCF-77
  • ProTime Serial
  • 1 Pulse Per Second
  • 1 KHz


Downloads

ProTime Sync Data Sheet (pdf)

Download

ProTime Sync User Guide (pdf)

Download
