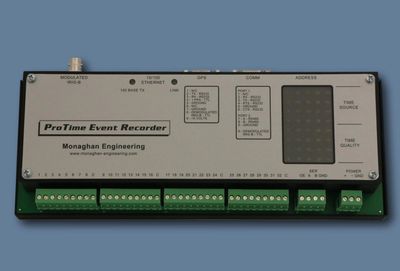

ProTime 100 Sequence of Events Recorder



The ProTime Event Recorder provides a permanent record of events, which occur within milliseconds of each other, such as the operation of circuit breakers or the shutdown sequences of compressors and other high-speed devices. The ProTime includes an embedded web server for monitoring and configuration.


Multiple ProTime modules may be synchronized together to provide a distributed event recording

system. The ProTime has inputs for all of the major time code protocols or the module will synchronize through its Ethernet connection using IEEE 1588 Precision Time Protocol.




Inputs

  • 32  - 4 Groups of 8 with a common return.

Input Voltage

  • 24VDC
  • 48VDC
  • 125VDC

Event Resolution

  • 1mS

Event Storage

  • 1,000,000 Events

Protocols

  • Modbus TCP/IP
  • DNP 3 TCP/IP
  • HTTP Embedded Web Server

Synchronization

  • IEEE 1588 Precision Time Protocol
  • Demodulated IRIG-B
  • Modulated IRIG-B
  • DCF-77
  • ProTime Serial Sync
