M580 Network Time Server & Time Code Generator

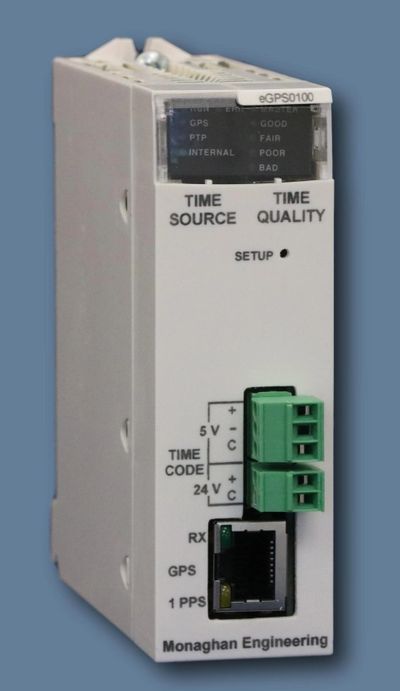

PME GPS 0100



The PME GPS 0100 clock operates as an IEEE 1588 Precision Time Protocol Grand Master or Slave Clock. When a GPS 400 receiver is connected, the module automatically switches to Master Clock mode and broadcasts time synchronization messages over the network. When a GPS signal is not available the module switches to Slave Clock mode and synchronizes with a master clock on the network. The module will track up to 5 master clocks and select the one with the most accurate time. The PME GPS 0100 also operates as an NTP Time Server. The module has one RS-485 and one 24VDC time output. Each output is individually configurable for IRIG-B or DCF-77 output. The module also includes an embedded web server for monitoring and configuration.



Features

  • NTP and PTP Time Server
  • GPS Time Synchronization and Position
  • PTP Time Synchronization
  • IRIG-B and DCF-77 Time Code Generator for BMX ERT 1604
  • GNS-RTK Interface for Centimeter Accuracy

Protocols

  • IEEE 1588 Precision Time Protocol
  • Network Time Protocol
  • HTTP Embedded Web Server
  • EtherNet/IP

Synchronization

  • GPS
  • IEEE 1588 Precision Time Protocol

Time Accuracy

  • +/- 1 uS

Position Accuracy

  • 2 cm

Outputs

  • 1 each - RS-485
  • 1 each - 24 Volt

Output Time Codes

  • IRIG-B
  • DCF-77


Downloads

PME GPS 0100 Data Sheet (pdf)

Download

PME GPS 0100 User Guide Rev 3.01 (pdf)

Download

PME_GPS_0100 CPX Rev 2_00 (zip)

Download

Monaghan DTM Update Tool Rev 1.1 (zip)

Download

PME GPS 0100 DTM Files (zip)

Download

GPS 400 User Guide (pdf)

Download

GPS 500 User Guide (docx)

Download

Video



Learn how to install the PME GPS 0100 DTM in Control Expert.

This video will guide you through the steps necessary to install the Monaghan DTM Update Tool and then use the tool to install or remove the PME GPS 0100 DTM from the DTM catalog.

Demonstration of PME GPS 0100 Clock Accuracy
This video shows the synchronization that can be acheived between two  PME GPS 0100 modules mounted in different M580 controllers.
